Specifications
Voltage: 220V
Frequency: 50/60Hz
Chamber - 304 stainless steels (Medical)
Capacity: 12L/18L/23L
Pressure variation: 0.0bar - 2.3bar
Sterilization temperatures: 121°C and 134°C
Water consumption per cycle: 160mL~180mL
Noise: <50db
Model 12L
Power: 2000W
dispenser: 1
Chamber Size : Φ200X360 mm
External size: 560 ×445×400 mm
Package size: 700x580x510 mm
Neto Weight: 28 Kg
Model 18L
Power:: 2000W
dispenser: 1
Chamber Size : Φ245X352 mm
External size: 560X450X400 mm
Package size: : 700x580x510 mm
Neto Weight: 30 Kg
Model 23L
Power: 2000W
dispenser: 1/12 dosadores (e dosaro e meio)
Chamber Size : Φ245X450 mm
External size: 670X450X400 mm
Package size: 810x580x510 mm
Neto Weight: 35 Kg

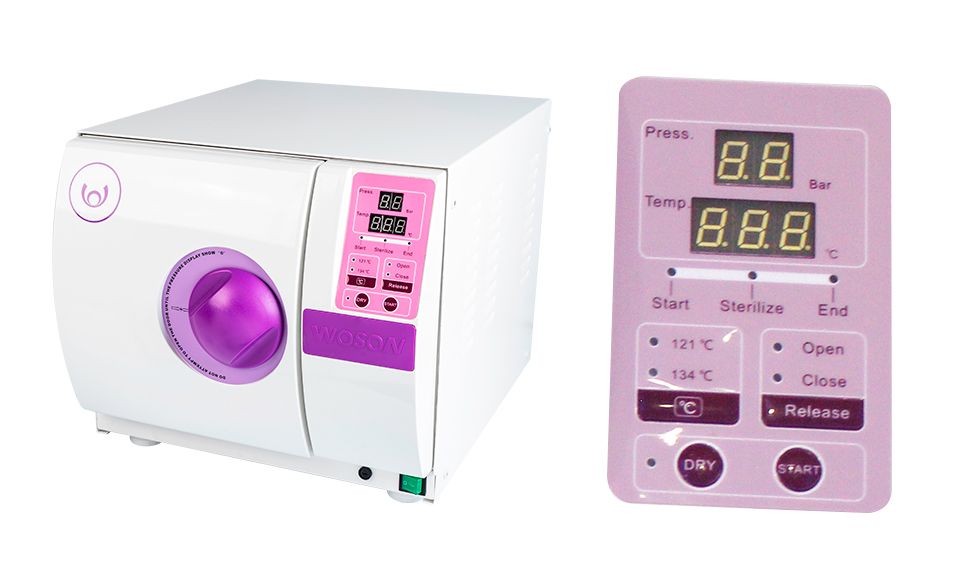

Front reading LCD panel identifies temperature, pressure, time, drying, open or closed system and end of cycle.
It deals with the sterilization of solid materials, by steam saturated with water under pressure. Automatic atmospheric pressure adjustment up to 3,000 meters altitude, above sea level
Preheating ring that controls the variations of temperature and pressure in the chamber during the sterilization process.
System deceleration and depressurization of the automatic stainless steel chamber.
Supply of distilled water directly inside the chamber, with level demarcation and internal resistance coverage.

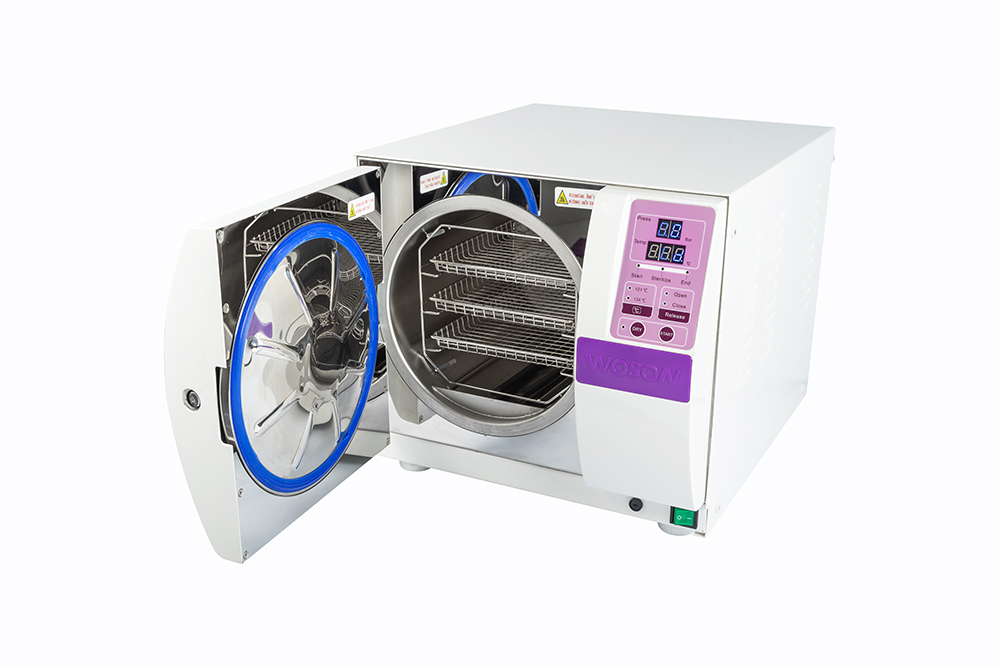

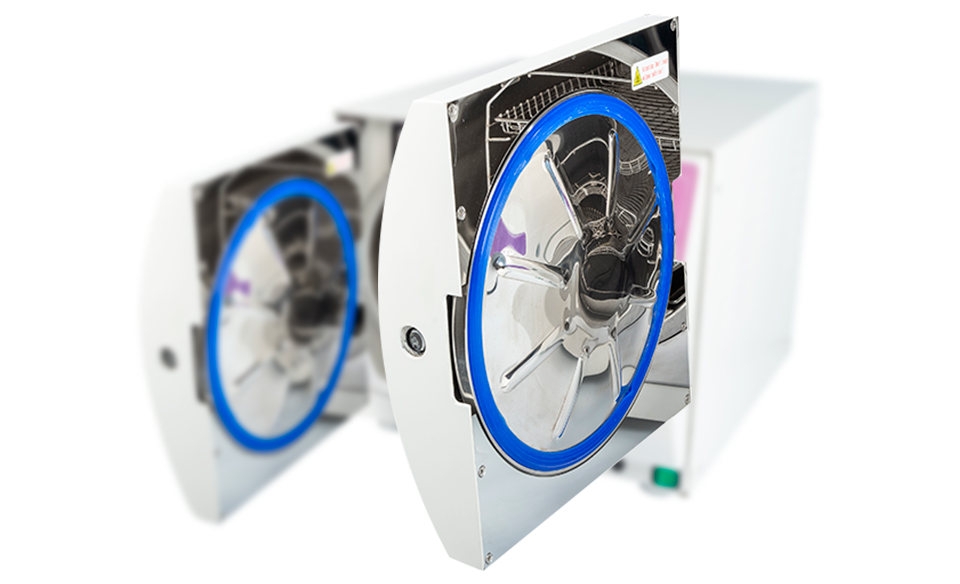

Steel chamber door with excellent finish, great resistance to pressure.
Sealing of the door with high performance silicone gasket resistant to temperature and pressure variation.
