Reflector

Italian design and manufacturing, elegant, integrated to the WOVO set, with multi-articulated long-range arm associated with three-dimensional head.

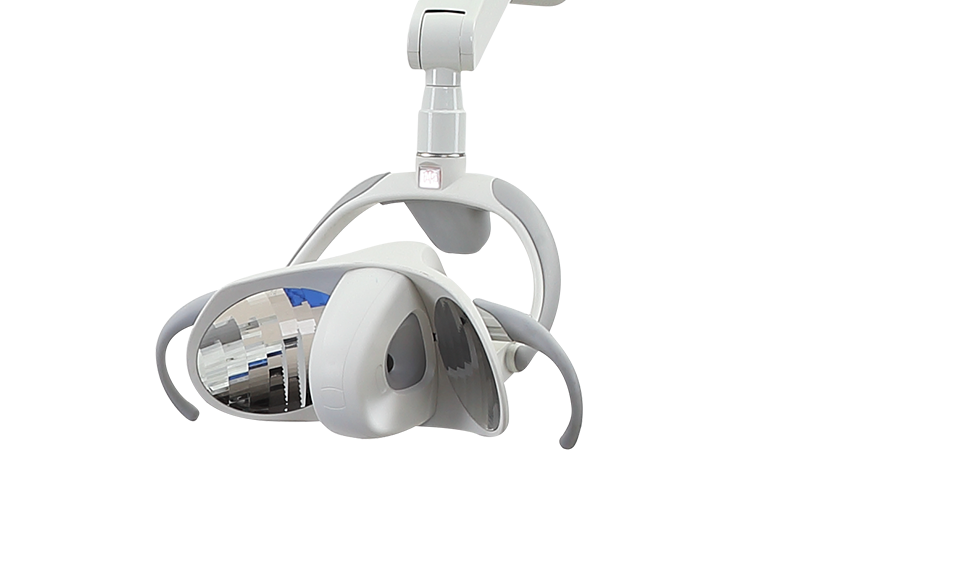

Reflector MAIA Faro

Multiarticulation of the arms and three-dimensional movement of the head that facilitate the targeting of the focus to all the quadrants of the oral cavity.

LED and multifaceted mirrors, whose facets are made up of 256 micro facets that result in absolutely natural light quality and without shadows.

Adjustable intensity between 3,000 and 35,000 luxes, associated with the color temperature of 5,000K, which result in ideal light for aesthetics. The fairly wide band allows to regulate the ideal intensity according to the need for illumination, resulting in patient and professional comfort during the clinical procedures.

As standard, the Wovo set comes with the Maia? model. Optionally, with EDI Faro? head.

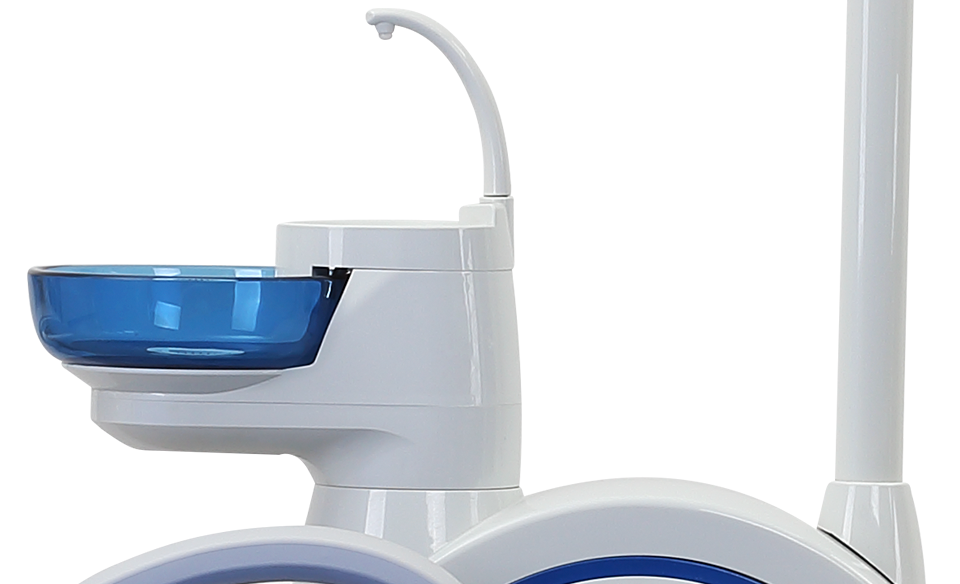

Water unit

Its rounded lines of the fairing, filled glasses and arm, perfectly integrated, give aesthetic unity to the whole.

It has articulated arm with side opening, rotating head with 4 slots, electronic control and side handles.

As standard, it comes with a syringe, two standard electric saliva and blood aspirators, compatible with Venturi or High Power suction, removable and autoclavable, with suction flow adjustment.

The support is ready to place the optional tip, be it light-curing, intraoral camera or similar.

Electronic command has the same functions as the Equipment CE.

The ducts are tracheas with anti-crushing steel core.

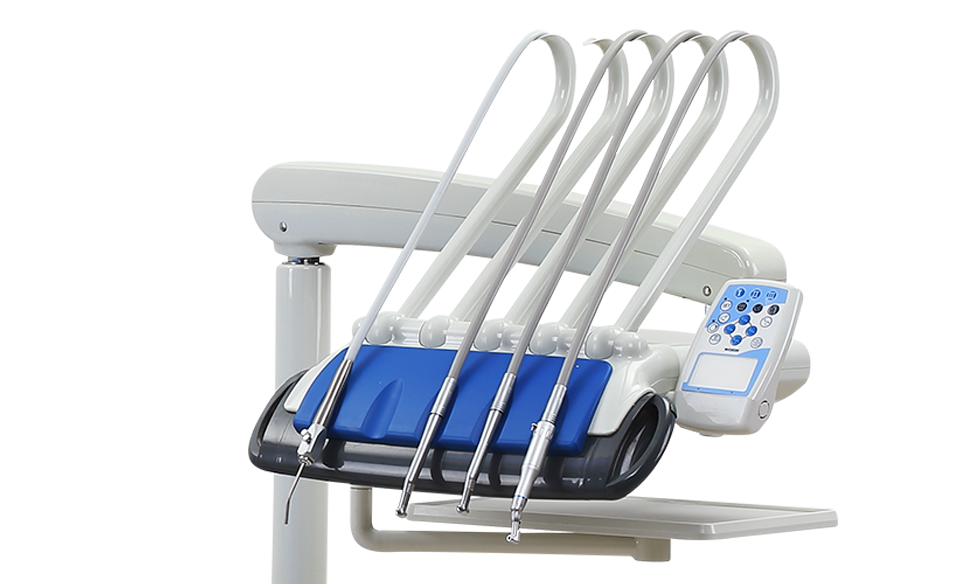

Equipment

The rounded lines of the arm, head and electronic control give beauty and unity to the whole. It has a mobile tray in options A1 or A2, comes with 4 tips of series and 1 optional, electronic multifunction control with negatoscopio and water-air-spray regulation of the tips.

Electronic command with 15 functions that activate up and down movements of the seat and backrest, program working positions of the chair, turn on and off the reflector, regulate the intensity of the light, activate the water in the cuspidor and fill glasses.

Support of tips with retractable rods and orbital movement that give lightness and ergonomics in the grip and the return of the tips. Its silicone cradle is removable and autoclavable, which favors disinfection.

Stop-system device, when the tips are actuated, automatically protects the patient and the professional from involuntary movements of the whole.

System of regulation of water and air of the tips that allows the regular user according to the preference.

Chrome pedal, slim and ergonomic, with progressive drive, equipped with a key to cut or release the spray from the tips and button for injection of air into the oral cavity.

As standard comes with model A1, equipped with pneumatic arm equipped with vertical and horizontal movements, lower rotating tray, retractable rods and autoclavable silicone cradle for the tips. wide work tray. Optionally, with model A2 equipped with upper rotating tray and hanging hoses.

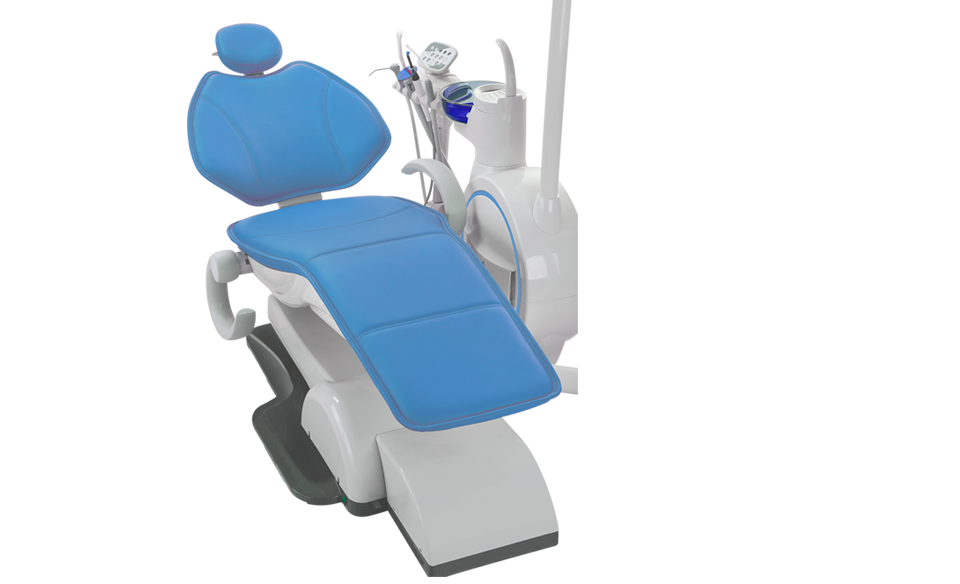

Chair

Iron base and pantographic system guarantee stability and movements free of vibration. Rounded drawing integrated to the set and with excellent approach of the professional to the operative field.

Adjustment of the level of the base in the installation.

Command on the foot, with intuitive operation of the up and down movements of the seat and backrest that provide patient safety, by means of a robust spindle system associated with a shock absorber.

As standard, it comes with water filter, air, pressure regulator and anti-Flame protection system that surrounds the base plate.

Retractable arm with free access and design that privileges the patient's relaxation during the treatment.

The thin leather upholstery favors the approach of the professional. Its integrated design confers beauty to the whole and guarantees comfort - important in prolonged treatments - to the patient.

Fine and multi-articulated head support that favors the approach to the operative field, allows several positions of the patient's cervical, facilitated by the metal lock, and gives security to the professional during the clinical procedures.

Automatic anti-spacing stop-system in the chair that protects the user when the unit moves.
